Code structure¶

Here the structure of the code is described.

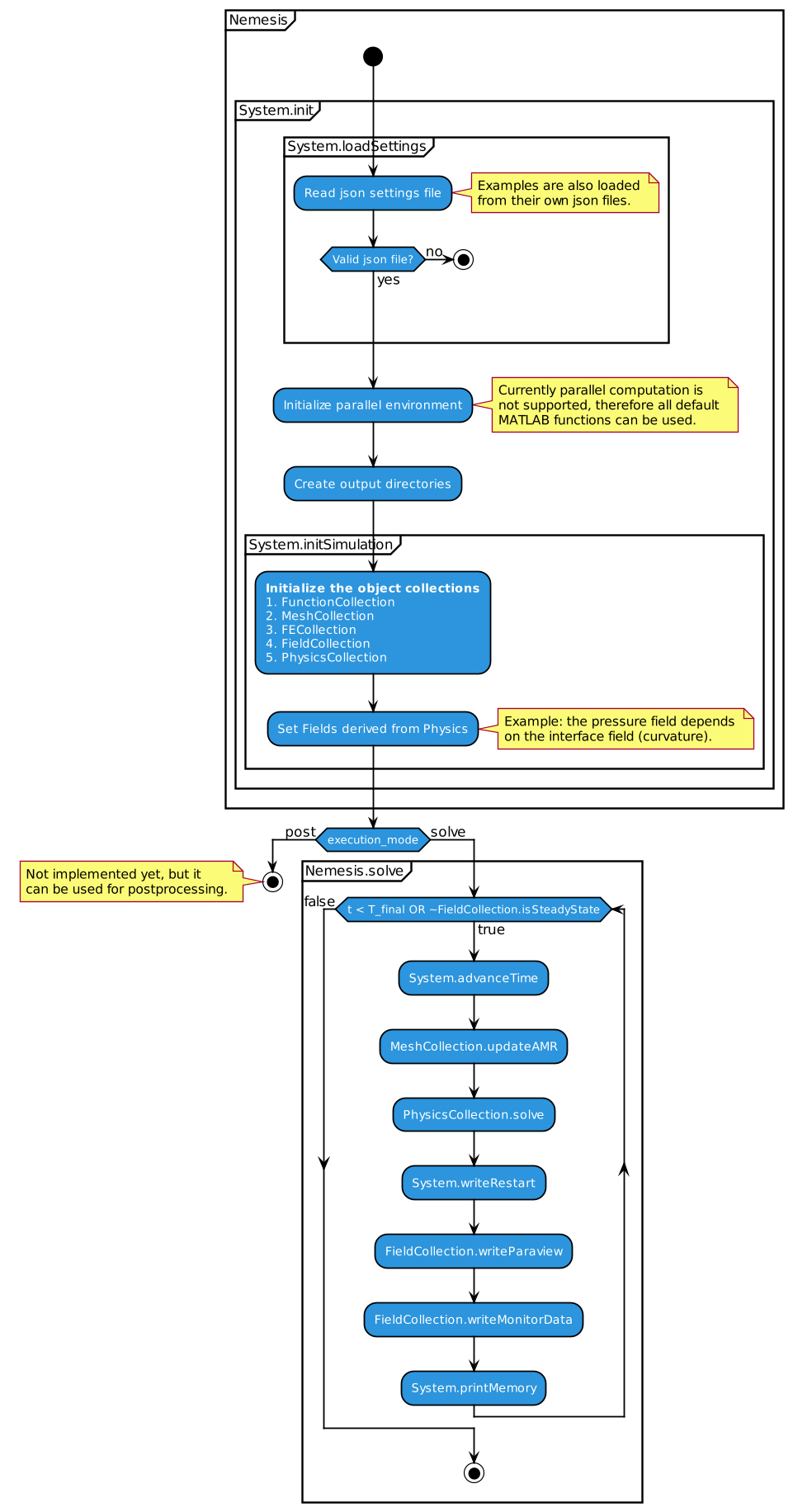

$@startuml scale 1.2 skinparam shadowing false skinparam defaultTextAlignment left skinparam activity { Fontcolor white BackgroundColor #2c95dd BorderColor black ArrowColor black ArrowFontColor black ArrowFontSize 14 DiamondFontColor white DiamondBackgroundColor #2c95dd DiamondBorderColor black } skinparam swimlane { BorderThickness 0 BorderColor white TitleFontColor hidden } partition Nemesis { start partition System.init { partition System.loadSettings { :Read json settings file; note right Examples are also loaded from their own json files. end note if (Valid json file?) then (no) stop else (yes) endif } :Initialize parallel environment; note right Currently parallel computation is not supported, therefore all default MATLAB functions can be used. end note :Create output directories; partition System.initSimulation { :**Initialize the object collections** # FunctionCollection # MeshCollection # FECollection # FieldCollection # PhysicsCollection; :Set Fields derived from Physics; note right Example: the pressure field depends on the interface field (curvature). end note } } } if (execution_mode) then (post) stop note left Not implemented yet, but it can be used for postprocessing. end note else (solve) partition Nemesis.solve { while (t < T_final OR ~FieldCollection.isSteadyState) is (true) :System.advanceTime; :MeshCollection.updateAMR; :PhysicsCollection.solve; :System.writeRestart; :FieldCollection.writeParaview; :FieldCollection.writeMonitorData; :System.printMemory; endwhile (false) stop } endif @enduml$

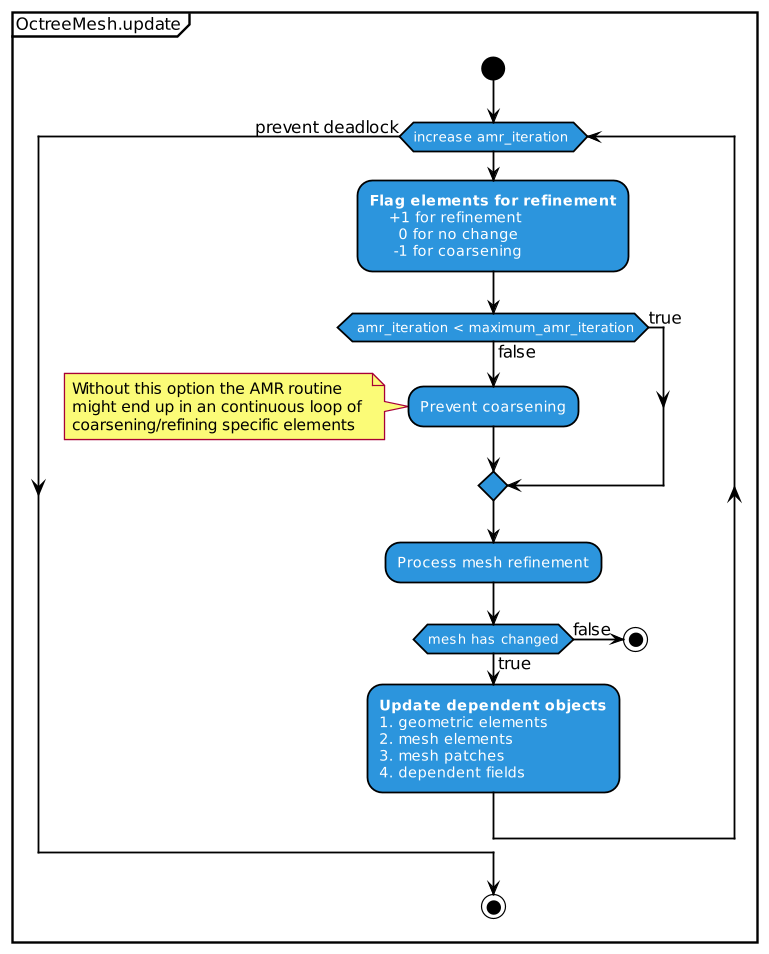

$@startuml scale 1.2 skinparam shadowing false skinparam defaultTextAlignment left skinparam activity { Fontcolor white BackgroundColor #2c95dd BorderColor black ArrowColor black ArrowFontColor black ArrowFontSize 14 DiamondFontColor white DiamondBackgroundColor #2c95dd DiamondBorderColor black } skinparam swimlane { BorderThickness 0 BorderColor white TitleFontColor hidden } partition OctreeMesh.update { start while (increase amr_iteration ) :**Flag elements for refinement** +1 for refinement 0 for no change -1 for coarsening; if ( amr_iteration < maximum_amr_iteration) then (true) else (false) -Prevent coarsening note left Without this option the AMR routine might end up in an continuous loop of coarsening/refining specific elements end note endif :Process mesh refinement; if (mesh has changed) then (false) stop else (true) :**Update dependent objects** #geometric elements #mesh elements #mesh patches #dependent fields; endif endwhile (prevent deadlock) stop } @enduml$
